TAD-280L is a high-performance controller specifically designed for single-acting valve applications. This compact controller advances precision in fluid dispensing with improved quantification accuracy, reducing tolerance from ±20% to an impressive ±3%. The TAD-280L also boasts a high-speed response, cutting dispense signal response time by 50% for faster start and stop functionality, making it ideal for applications requiring rapid, precise fluid control.

• Enhanced Precision: Achieves a reduced tolerance of ±3% for precise quantification, significantly increasing accuracy.
• High-Speed Response: Cuts response speed by 50%, reducing wait times when starting or stopping discharge.
• Precise Time Control: Enables discharge time control in 0.001-second increments for ultra-fine adjustment.
• Noise Reduction: Equipped with a high-quality silencer, reducing operational noise by 50%, contributing to a quieter work environment.
• Compact Design: Space-saving design makes it easy to integrate into various dispensing setups.

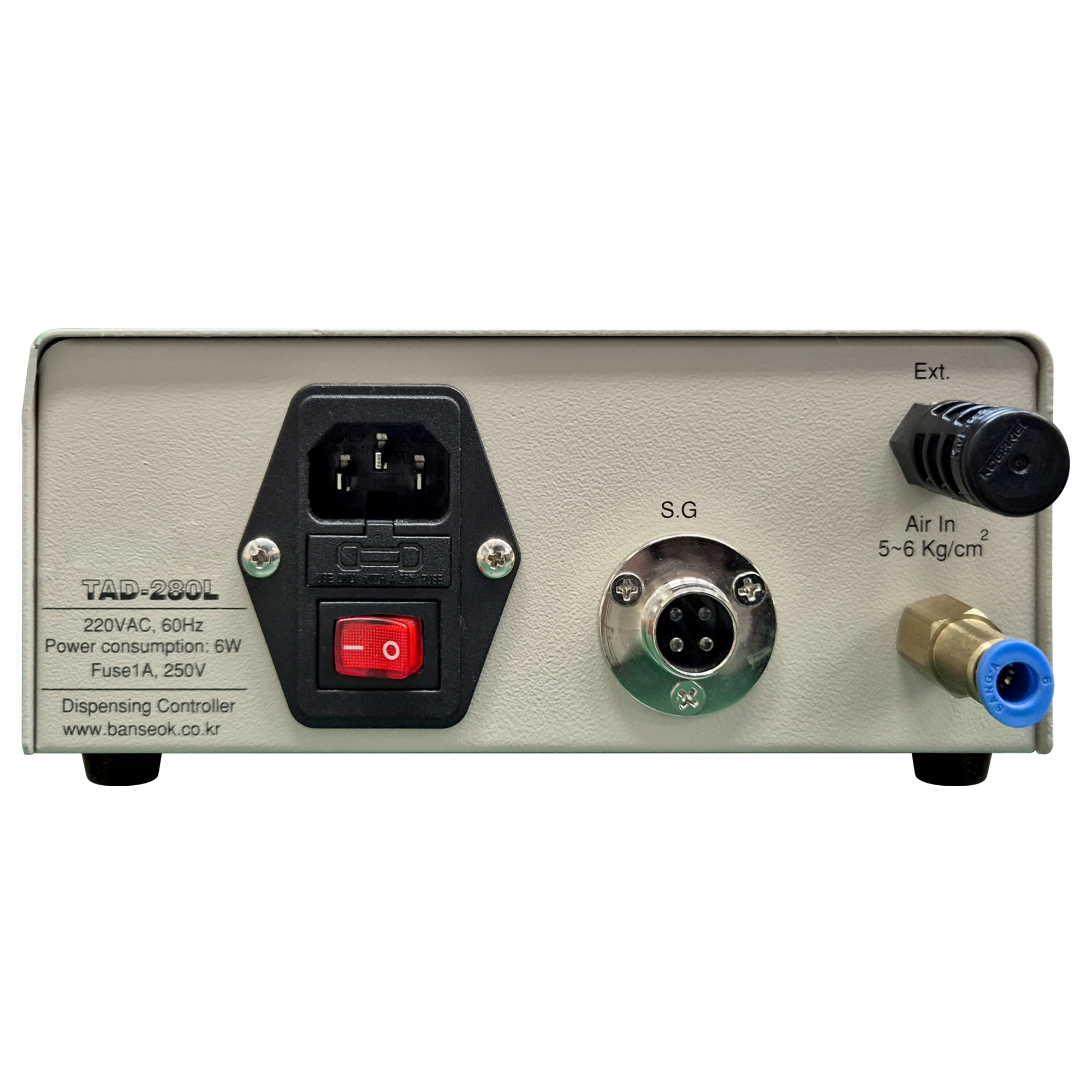

Model	TAD-280L
Control Method	Electronic / Pneumatic System
Dispensing pressure	0~10kg/cm2 (S: Standard) 0~4kg/cm2 (L: Option) 0~2kg/cm2 (P: Option)
Time Range	0.001~99.99 sec
Pattern Channel	1~10 Channels
Memory Function	500 memories
Display Section	LCD digital display
Input / Output Signal	Open connector, DC 24V
Out Signal	Open Collector, DC 24V
Power Source	AC220V 50/60Hz (AC100V 50/60Hz:Option)
External Dimension & weight	176(W) x 154(D) x 72(H)mm, 2.4kg
