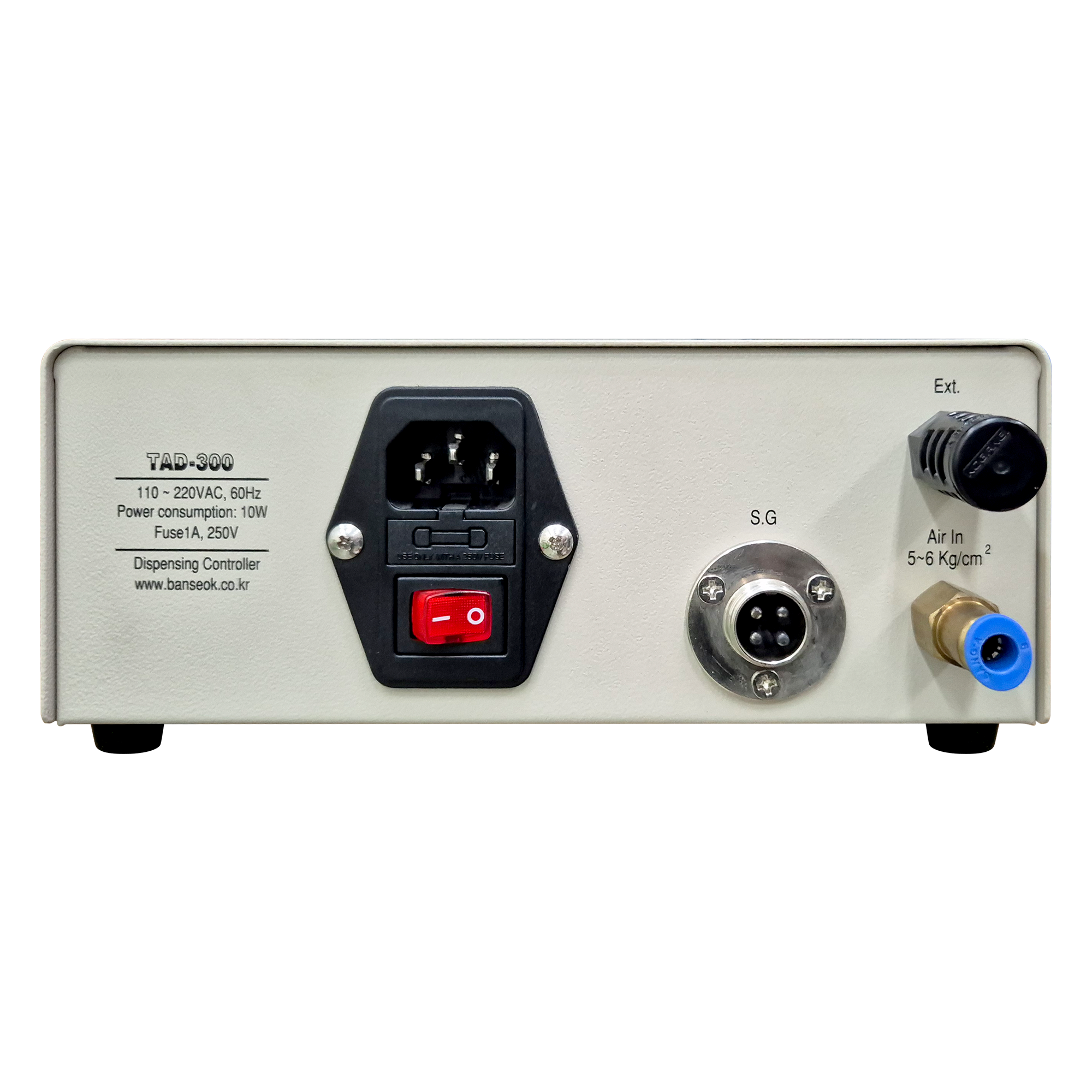

TAD-300L is an advanced time-compensated dispensing controller engineered for applications requiring high accuracy in fluid dispensing; with automatic compensation for dispense changes due to water head differences. Enhanced from the AUTOMATIC-7 model, the TAD-300L provides precise control with a reduced tolerance from ±20% to ±3% and offers high-speed response by cutting discharge signal response times by 50%. This controller supports exact time calibration down to 0.001 seconds, delivering outstanding control and consistency in point or line dispensing.

• Time-Compensated Control: Automatically adjusts for changes in discharge volume and start position due to water head variations, ensuring consistent output for both point and line applications.
• Enhanced Precision: Provides a reduced tolerance of ±3% for superior quantification accuracy, enhancing reliability across various applications.
• High-Speed Response: Cuts response speed by 50%, reducing wait times for efficient dispensing control.
• Advanced Time Calibration: Controls discharge time with 0.001-second precision, with automatic corrections for large-volume applications (e.g., adjustments every 100-500 discharges for a 50cc barrel).
• LCD Digital Display: Offers digital time setting via a clear LCD display, enabling accurate and easy calibration for operators.
• Noise Reduction: Equipped with a high-quality silencer, reducing noise by 50% for quieter operation.

Control Method	Electronic / Pneumatic System
Dispensing pressure	ㆍ 0~10kg/㎠ (S: Standard)  ㆍ 0~4kg/㎠ (L: Option)  ㆍ 0~2kg/㎠ (P: Option)
Time Range	0.01~99.99 sec
Pattern Channel	1~10 Channels
Memory Function	500 memories
Display Section	LCD digital display
Input / Output Signal	Open connector, DC 24V
Out Signal	Open Collector, DC 24V
Power Source	AC220V 50/60Hz (AC100V 50/60Hz:Option)
External Dimension & weight	176(W) x 154(D) x 72(H)mm, 2.4kg
