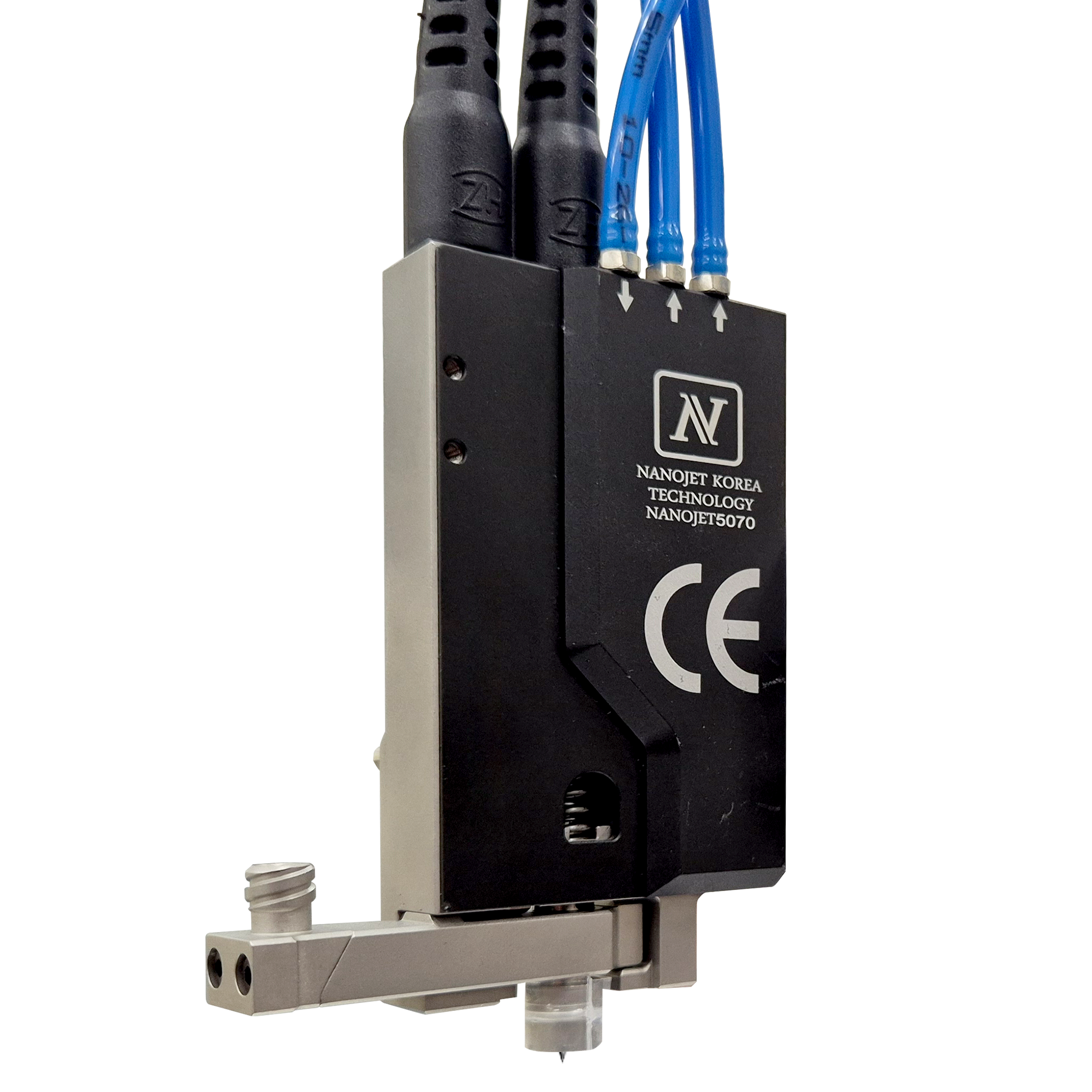

Piezo Jet Vavle
BJ-5070

주요기능 및 특장점

  • The Piezo-based dispensing valve allows for high-speed, repetitive, ultra-precise dispensing, making it suitable for various fields requiring precision.
  • It offers excellent quantitative dispensing and fine amount control, tailored to the material being used, with superior consistency in repetitive and continuous operations.
  • The valve sprays in circular dot patterns, enabling dot-based dispensing and line coating.
  • UV, Epoxy, Silicone, Etc

제품사양

ModelBJ-5070
Max Frequency500 cycles/s
Min Flow rate0.004mg/dot
Viscosity Range1 ~ 200,000cps
Mini Dot size0.2~0.3mm
Piezo StackGerman PI Stack
Valve change timeWithin 5 minute
Dimension101 x 72 x 27mm
Weight380g
Max Temp80℃
Nozzle TypeTungsten carbide/ceramic
Min Nozzle Size50um
Life time3-5 years/0.5 billions dots
